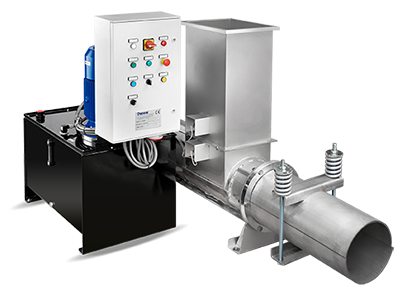

Shavepacker D3 is a compactor for leather shavings and wet leather trimmings, designed for waste handling in tanneries. It compacts the material to reduce occupied volume and simplify handling.
How Shavepacker D3 works
The machine can be positioned at the end of the processing line’s conveyor. It collects and continuously compacts the waste, producing cylindrical or rectangular compacted material according to the configuration.
Volume reduction can reach up to 80%. A lower volume helps limit storage space and waste handling; the result should be assessed against the material and operating conditions.

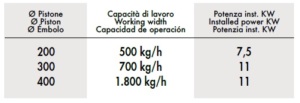

Available models
D3 200
Iron body for tannery applications.
D3 300
Entirely stainless-steel construction.
D3 400
Entirely stainless-steel construction for high production volumes.
Technical data
| Motor | 11 kW |
| Hydraulic unit oil tank | 200 litres |
| Production capacity | Up to 1,800 kg/h |
| Volume reduction | Up to 80% |
| Compacted material shape | Cylindrical or rectangular |
| Dimensions (L × W × H) | 2,100 × 600 × 940 mm |
Check the data and dimensions of the required model and configuration with Danese before selecting it for your line.
Installation photos
Installation and operating videos
Two examples of Shavepacker D3 installation and use.
Request information or a quotation
Specify the waste material, quantity to be processed and layout of the line or conveyor. Danese can assess the model and integration with your installation.
